Fluid Handling Equipment
When it comes to the handing of fluids and solids, CEG is well equipped to meet the needs of its clinents. Please view the gallery below to see examples of what we have to offer:

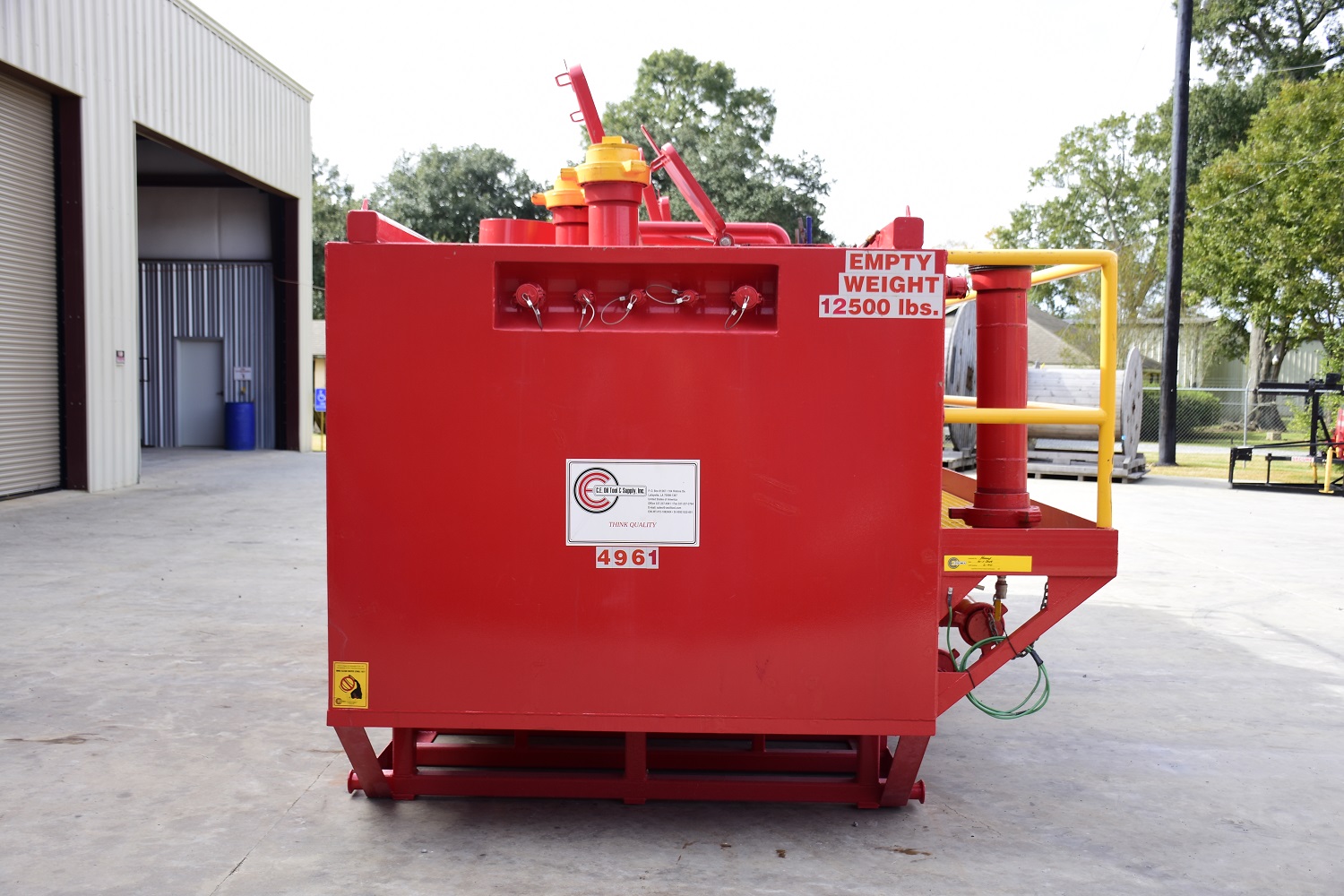

105 BBL Weir tank
Open or Closed Configurations
3 Compartment Tank with mixing capabilities. Can be equipped with a Gas Buster or Shale Shaker to handle return fluids.
Closed Top Dimensions
Length: 20′ Width: 8’8″ Height: 7’6″
Weight: 12,500 lbs.
Open Top Dimensions
Length: 20’10” Width: 8’2″ Height: 7’4″
Empty Weight: 7,500 lbs.

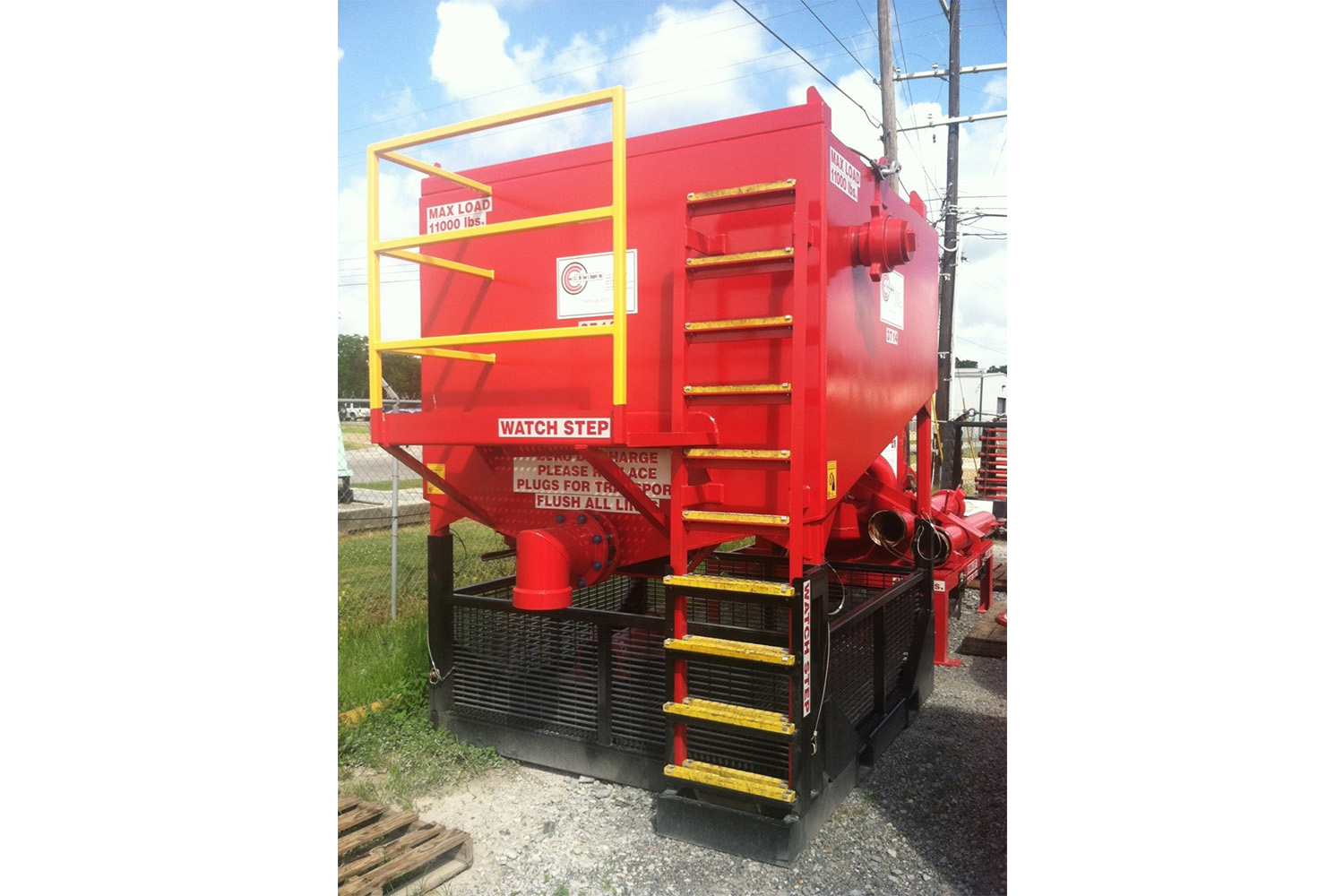

Closed top Sand Tank
40 BBL capacity tank with a sloped bottom to give return fluids more separation time. The height of the tank is adjustable to accommodate different cutting box designs and it can be equipped with an optional Gas Buster.
Dimensions
Length: 10’2″ Width: 8’5″
Minimum Height: 10’1″
Empty Weight: 10,000 lbs.

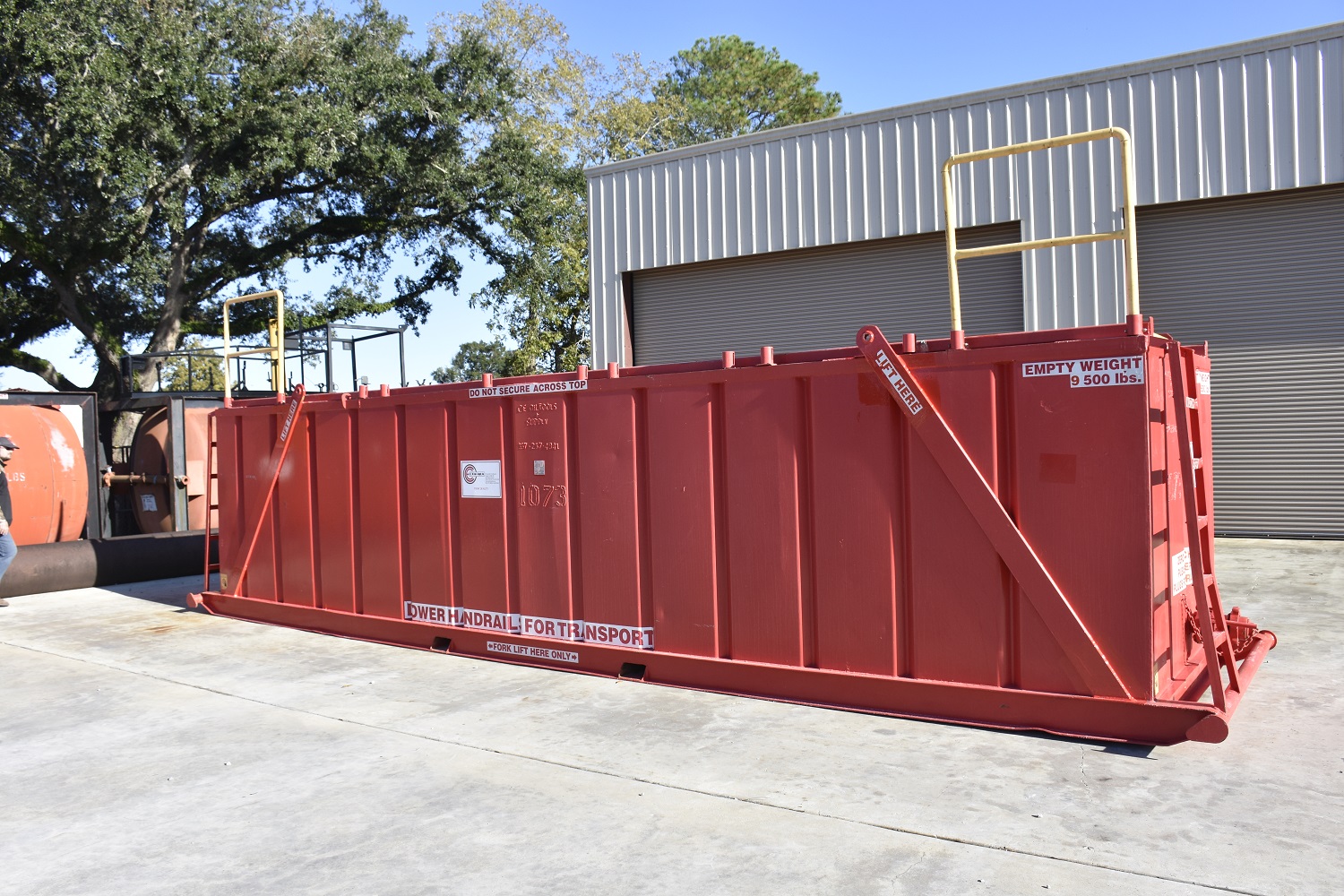

210 BBL Open Top Tank
Open or Closed Configurations
The largest tank in our fleet for bulk fluid storage. Can be equipped with dual shale shakers.
Dimensions
Length: 33’3″ Width: 8′ Height: 7’9″
Weight: 15,000 lbs.

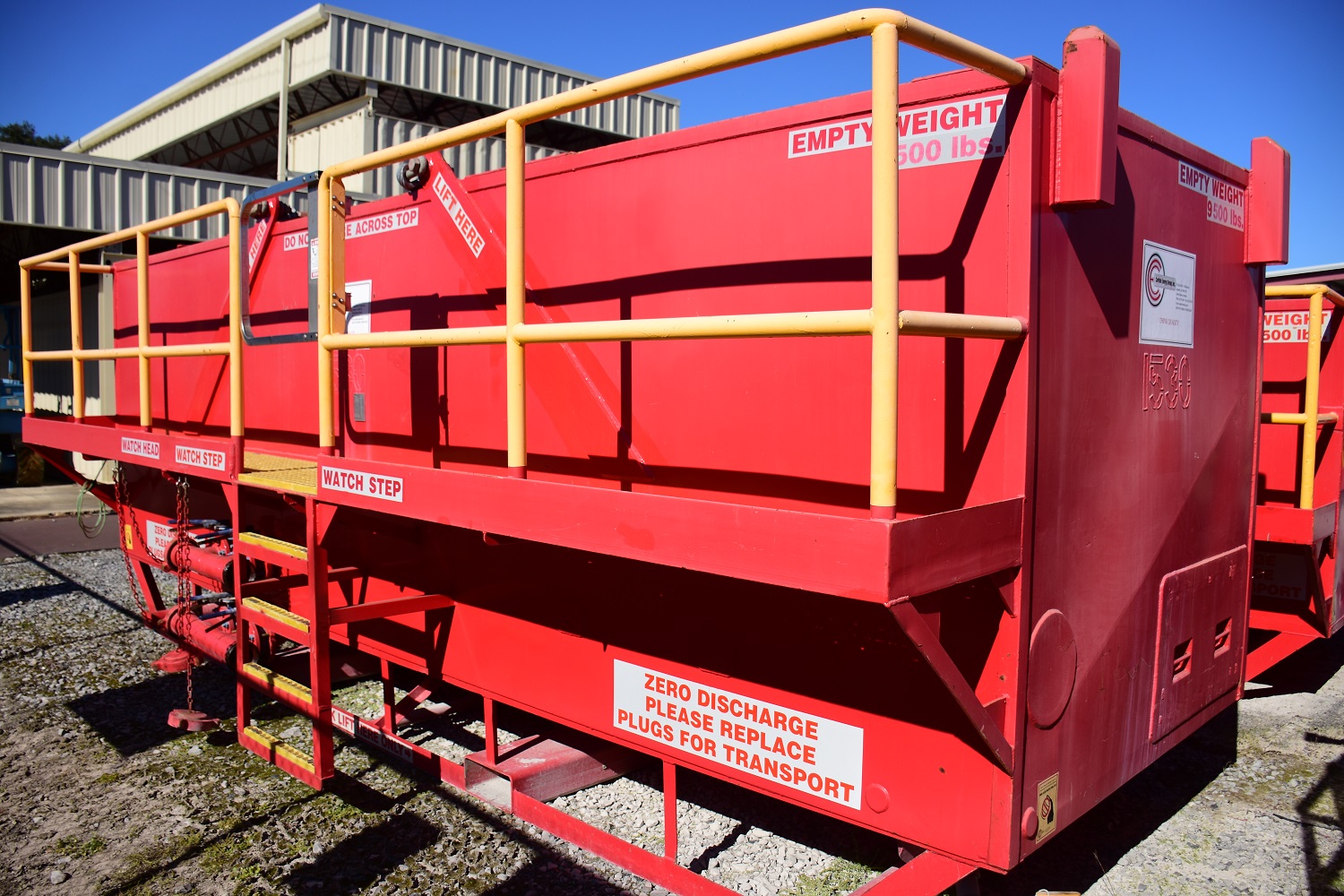

125 BBL Mixing Tank
Our 125 BBL open top 2 compartment mixing tank provides simple bulk fluid handling solutions, and can be equipped a shaker system if needed.
Dimensions
Length: 20’9″ Width: 8’2″ Height: 8’2″
Weight: 9,500 lbs
Blending Tanks
Whether you need to blend cement or chemicals, our blending tanks have you covered. These tanks are available in various sizes to suit the exact needs of you project.
50 BBL Dimensions
Length: 11’6″ Width: 8′ Height: 10’1 ” Weight: 6,500 lbs.
25 BBL Dimensions
Length: 9’7″ Width: 7’9″ Height: 8’8 ” Weight: 4,500 lbs.
15 BBL Dimensions
Length: 7’6″ Width: 5’6″ Height: 9’7 ” Weight: 3,500 lbs.
6 BBL Dimensions
Length: 6′ Width: 5’3″ Height: 9’1 ” Weight: 3,000 lbs.

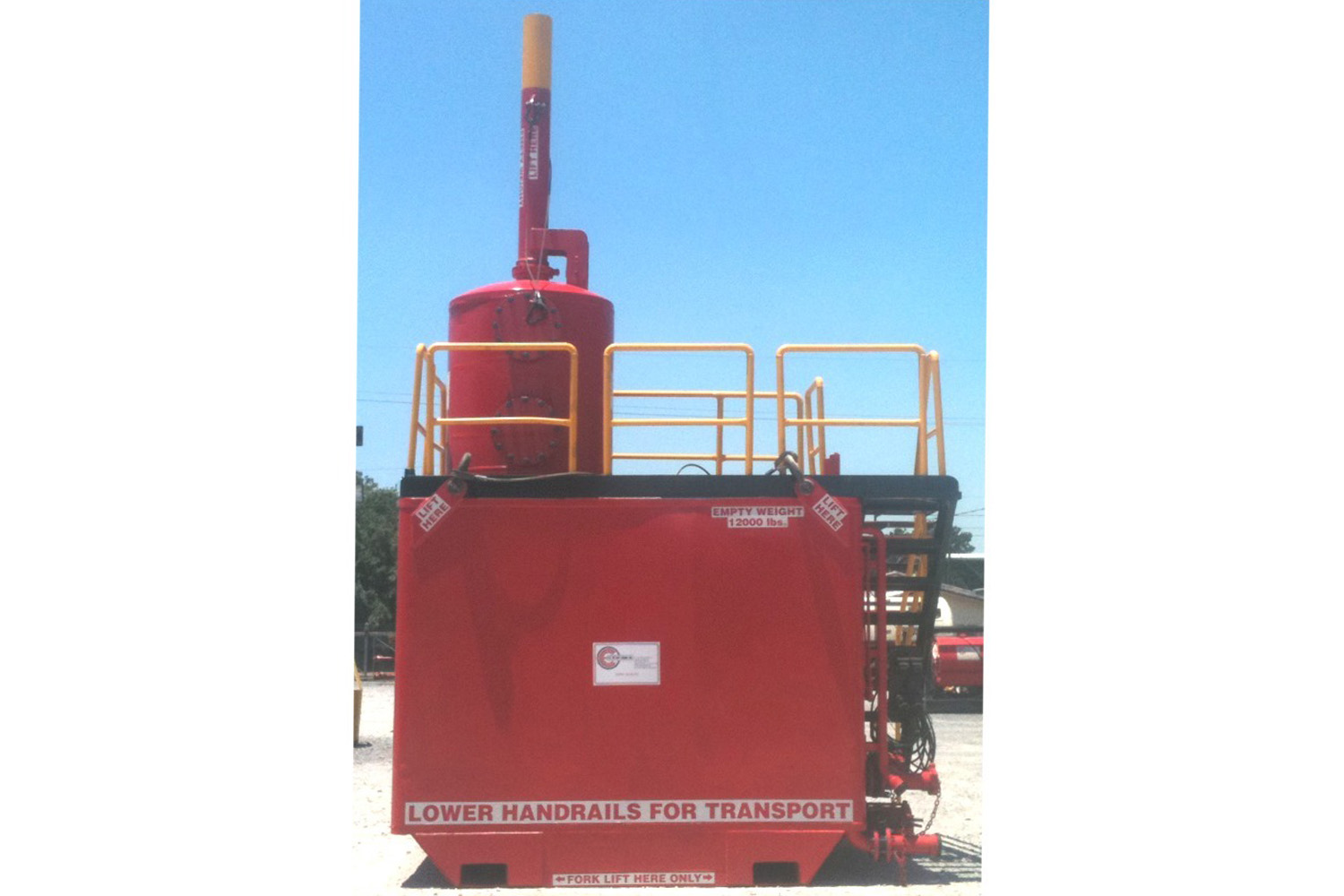

Space Saver Tank
This 3 compartment tank is designed to efficiently utilize space without compromising functionality. This tank comes equipped with lighting and a gasbuster to suit the needs of your project.
Dimensions
Length: 12’4″ Width: 8′ Height: 10’1″
Weight: 13,000 lbs.

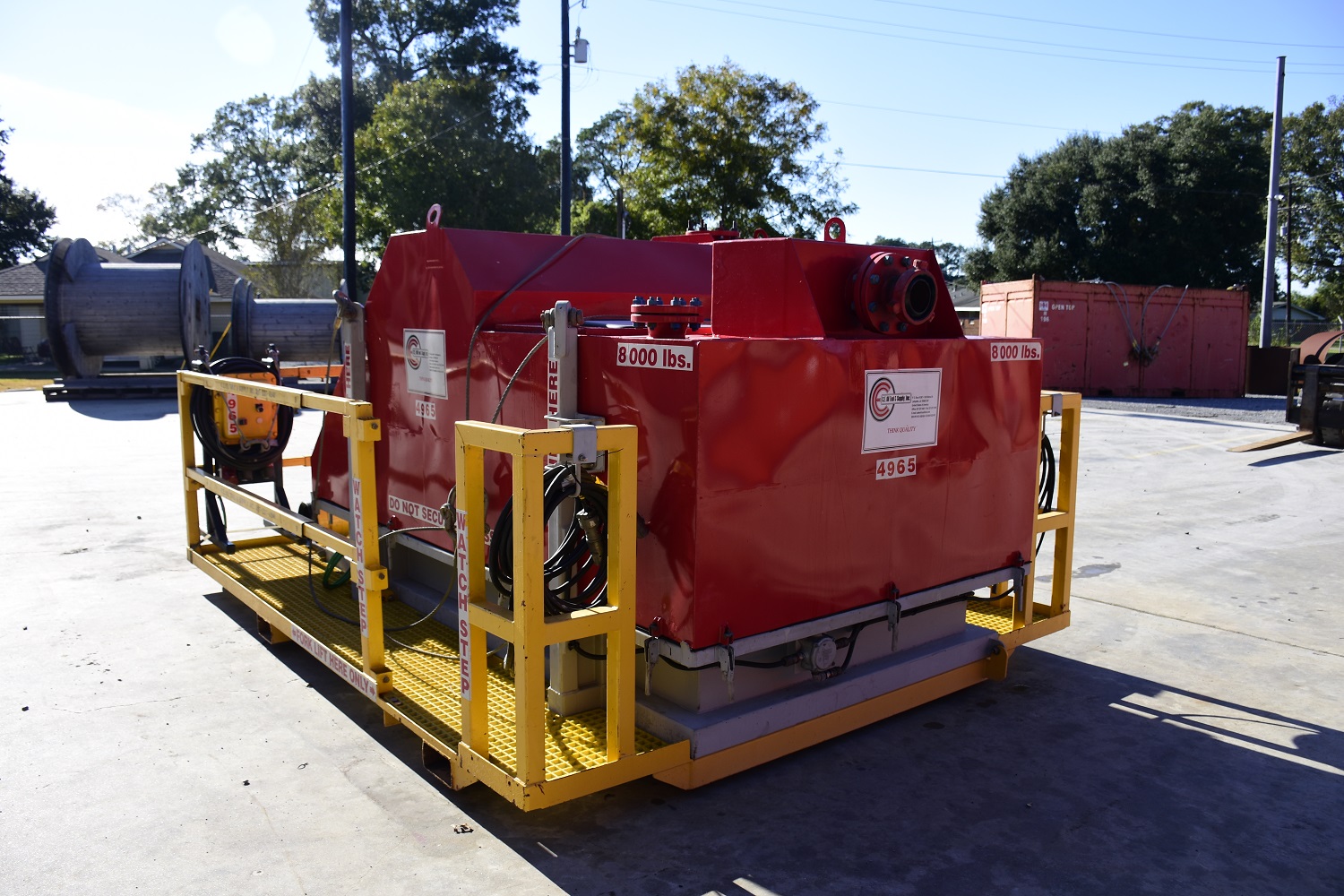

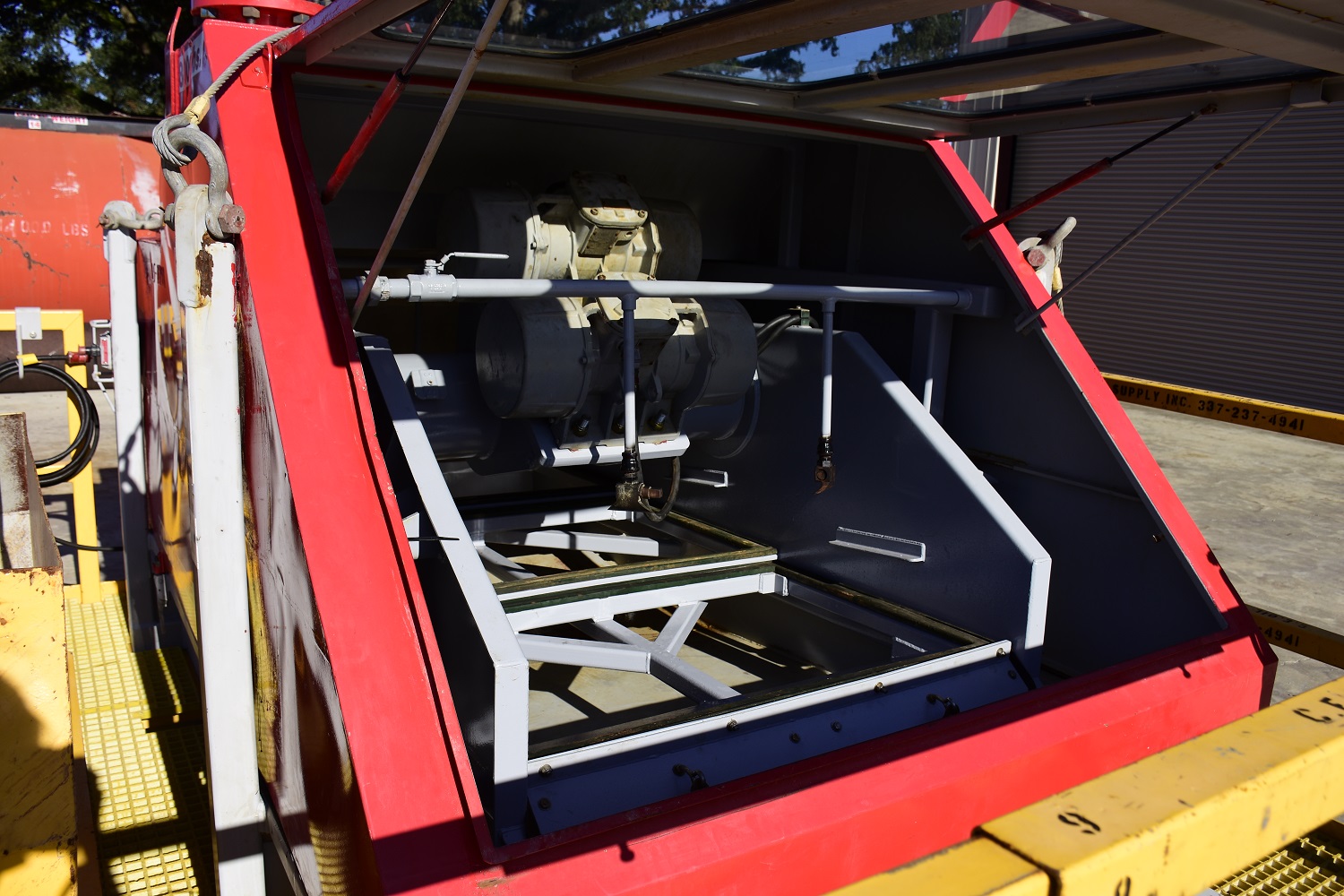

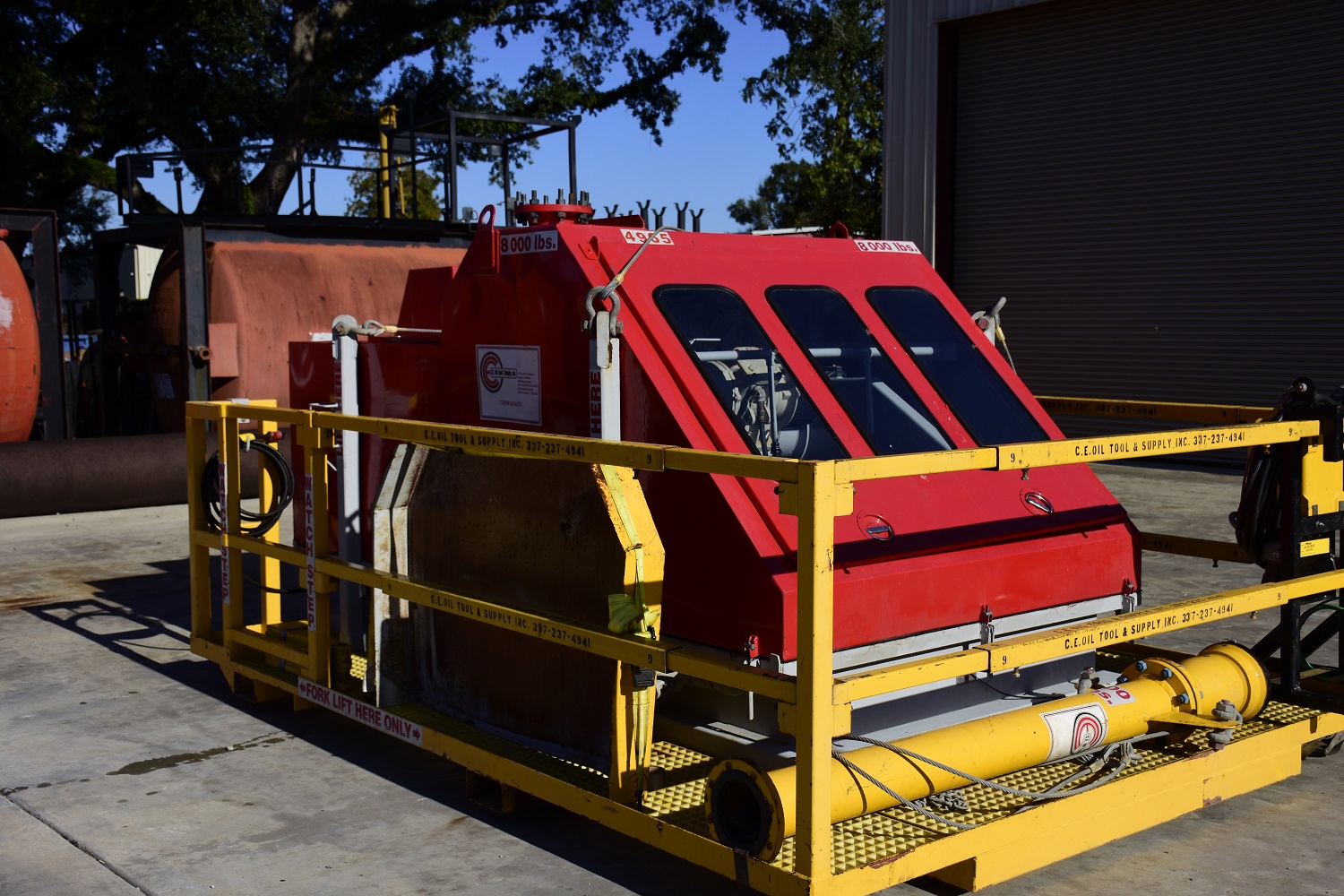

Shale Shaker
Uses dual vibrating motors during flow back operations to separate solids while fluids are returned to a tank.
Dimensions
Length: 13′ Width: 9’6″ Height: 6’5″
Weight: 8,000 lbs.
48" Gas Buster
Designed in house and backed with engineering calculations, our 48″ Gas Busters are built to handle high flow rates over long periods of time. The unit has vent stacks mounted on it for convenience, and can be equipped wit ha flame arrestor
Dimensions
Length: 6’2″ Width: 6’2″ Height: 8’10”
Empty Weight: 4,000 lbs.

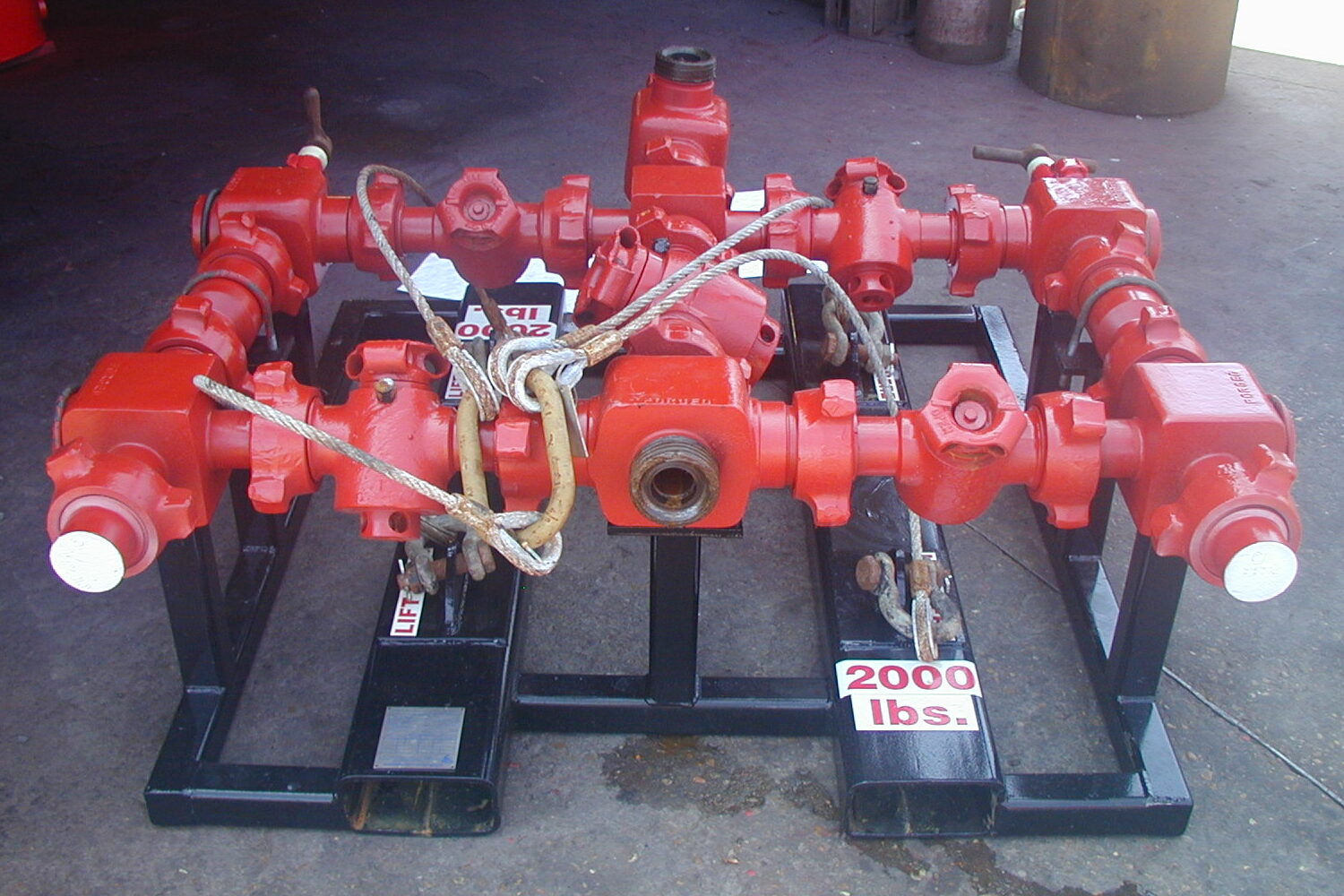

Dual Choke Manifold
For high pressure flow backs. Manual operation with 2 1/16” full bore. All valves are manual operated gate valves for full flow capacity.
Dimensions
Length: 5′” Width: 4’10” Height: 2’3″
Weight: 3,000 lbs.
